GL1000, GL1100 and GL1200 PathBlazer Headlight Modulator
Couldn't load pickup availability

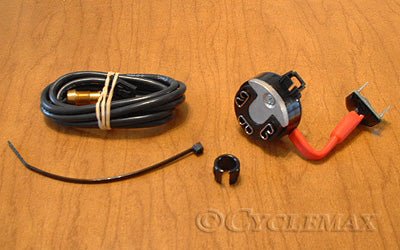

This is a PathBlazer headlight modulator. It is made by Kisan Technologies and is designed to modulate the headlight bulbs for better visibility. This is a complete plug and play unit and meets federal DOT standards in all states. This is available for use with either halogen bulbs or LED bulbs. Be sure to make your selection when ordering. This will fit all GL1000s, GL1100s and GL1200s from 1975-1987. P115W-S
This unit is totally self-contained. There are no hidden boxes or switches. There are no wires to cut or splice.
It is designed for 3-pin H4 or a Japanese H7 2-pin style headlamps. It's 1.25" (32mm) round, and requires NO ADDITIONAL SPACE after it's plugged on the back of the bulb.
pathBlazer circuit modulates the hi-beam current - from 100% ON to about 17% OFF. This is accomplished by using a p-channel MOSFET, which is inherently safe. The MOSFET is designed to fail in the ON state. For additional safety, the circuits DO NOT utilize the lo-beam whatsoever!
MAX power rating is 115 watts. DO NOT EXCEED!
These units come with a detachable daylight sensor, which simply plugs into the pathBlazer. The daylight sensor functions as a switch; it stops modulation when it cannot see enough daylight. Since the internal circuitry is controlled by a microprocessor, it allows for customizable features.
Programmable Daylight Sensor
If you turn the high beam on and then turn the ignition on three times quickly, the sequence is interpreted as an active command to change the sensitivity.
Current software version v.823A allows 8 linear steps between the high and low end.
The daylight sensor has a low frequency filter to avoid false triggering. Please note that florescent lamps may not trigger the sensor - it needs constant incandescent light.
pathBlazer uses a soft-switching technique. It throttles the current flow through the bulb filament, so that there's no "thermal shock" due to a sudden inrush of current, which can damage the bulb filament or shorten its life considerably. This is far superior than maintaining a small voltage!
Select hi-beam to modulate - as long as there's sufficient daylight. If you enter a tunnel or if it gets dark, it will stop the modulation of the hi-beam and stay ON steady. Select lo-beam to end modulation.
You have complete control.
Item: KIP115W-S, KIP115W-LED Kisan Technologies
