Dual Load Equalizer - SD01008

This is an LED dual load equalizer. This unit is made by Signal Dynamics and is designed to restore the load on the turn signal flasher to a normal level if any incandescent lamps are replaced with LED's. This keeps the turn signals flashing at a normal pace. This will work for one left and one right conversion. If you are changing front turn signals and rear turn signals to LED's, you will need two of these units.

The Dual Load Equalizer Module is designed to correct the issue of turn signals flashing too quickly or not at all. It does this by adding back the load to your mechanical flasher relay that was removed by converting stock incandescent turn signals to LED’s. LED's don't have as much resistance as regular incandescent bulbs and this is caused by a much lower power draw. Resistance is what causes the turn signal to work correctly. Too little a load, and the blinker won't function fast enough...too much load and it will blink too quickly. What the dual load equalizer does is place an artificial load on the circuit so the original blinker will work correctly and at the right speed. 01008, 48-0997

Features
• Universal application for most makes and models of motorcycles
• Equalizer will stablize 1 pair of turn signals*
• Compatibile with alarms on most motorcycles equipped with alarm systems*
• Potted with a heat resistant epoxy in an aluminum case
• Waterproof potting prevents water damage to electrical components
• Simple 2 wire tap-in installation (2 tap splice connectors included!)

Please Note:
1.) *The security key light will still be lit on late model Harley-Davidsons equipped with the factory security system even with this Dual-Load Equalizer installed. However, the security system is still fully functional and will not be damaged in any way.
2.) *This module is only meant for ONE PAIR (2) of turn signals. If you plan to equalize your front AND rear signals, this will require (2) Dual Load Equalizers.
3.) Hazard flashers can be used for up to 1 hour continuously. (Using hazards for extended periods of time causes heat buildup inside the module, which will not cause any damage to your motorcycle but may damage the components inside)

Mounting and Installation
To install, simply tap the brown wire onto your right turn signal output wire and tap the violet wire onto your left turn signal output wire. Connect the black wire to a ground source and mount the Dual Load Equalizer. It is recommended that the module be mounted in a location not subject to extreme heat conditions. We highly recommend mounting on a flat area of your frame away from any plastic, wiring, or exposed cloth. Secure with the included double sided adhesive pad.

Specifications
Part Number: 01008
Weight: Less than 1lb
Correction Limit: 2 Turn Signals
System Requirement: N/A
Attachment Method: Included Double Sided Adhesive Pad
Height (in): 5/8"
Length (in): 2 1/4"
Width (in): 1 5/8"
Wire Length: 5"-6"
Material: Anodized Aluminum Case with Heat and Water Resistant Potting
Wire: 16AWG - 20AWG

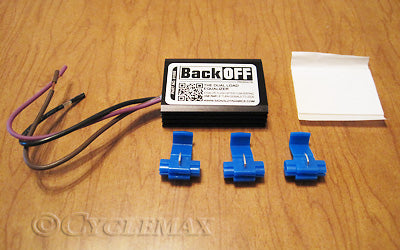

Package Contents: (1) Dual Load Equalizer Module, (1) Adhesive Mounting Pad, (3) Tap Connectors
Color / Finish: Black Anodized
Hardware Included: No
Connectors Included: Yes (3)
Tools Required: Wire Cutters, crimp connectors; optional test light, soldering iron
Waterproof: No
Water Resistant: Yes
Heat and Vibration Resistant: Yes
Companion Product(s): n/a

Item:  SD01008, T48-0997  Signal Dynamics
