2018 GL1800 Electronic Fuse Block
Couldn't load pickup availability
2018 GL1800 Electronic Fuse Block – Show Chrome
The 2018 GL1800 Electronic Fuse Block by Show Chrome is a must-have for riders adding electrical accessories to their Gold Wing. This Plug and Play fuse block is designed specifically for the 2018 and newer GL1800 Gold Wing models, offering a simple, safe, and efficient way to manage multiple electronic additions. The fuse block features 11 terminal tie-in points that are electronically protected by 9 separate relays and fuses, ensuring your accessories are properly integrated without compromising the integrity of your bike’s electrical system.
Key Features:
- 11 terminal tie-in points for adding lights and accessories
- 9 separate relays and fuses for enhanced protection
- Turn signal, running lights, brake light, always-on, and keyed connection points
- Gold Wing’s electrical system is protected by a 20 amp fuse and a 30 amp relay
- Includes two sub harnesses with OEM connectors for seamless connectivity
- Plug N’ Play design for quick and easy installation
- Compact design: 3 3/4" X 2 3/4" X 1 1/8"
Fitment:
- Honda GL1800B Gold Wing 2018, 2019, 2020, 2021, 2022
- Honda GL1800BD Gold Wing DCT 2018, 2019, 2020, 2021
- Honda GL1800 Gold Wing Tour 2018, 2019, 2020, 2021, 2022, 2023
- Honda GL1800D Gold Wing Tour DCT 2018, 2019, 2020, 2021, 2022, 2023
- Honda GL1800DA Gold Wing Tour DCT Airbag 2018, 2019, 2020, 2021, 2022, 2023
Ensure that your bike’s electrical system remains safe and organized with this durable, compact fuse block. A must-have accessory for any rider looking to expand their 2018+ Gold Wing with additional electrical components.
SKU: 52-942
Customer Reviews
Very easy install although I used Wago connectors to connect the harnesses to the fuse block instead of what was provided. Everything worked perfectly the first time everything was connected, which is always a plus. I used the fuse block to connect the GT Marvel trunk light. I do wish Show Chrome used connectors from the factory instead of bare wires, but everything works fine as is. Screwing down the tiny, I think 22-gauge, wires was a bit challenging. Patience is key. Definitely recommend.

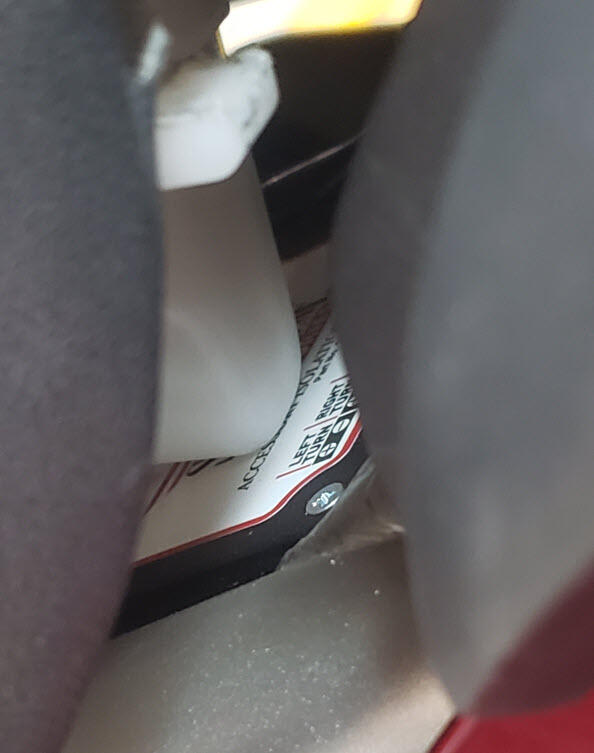

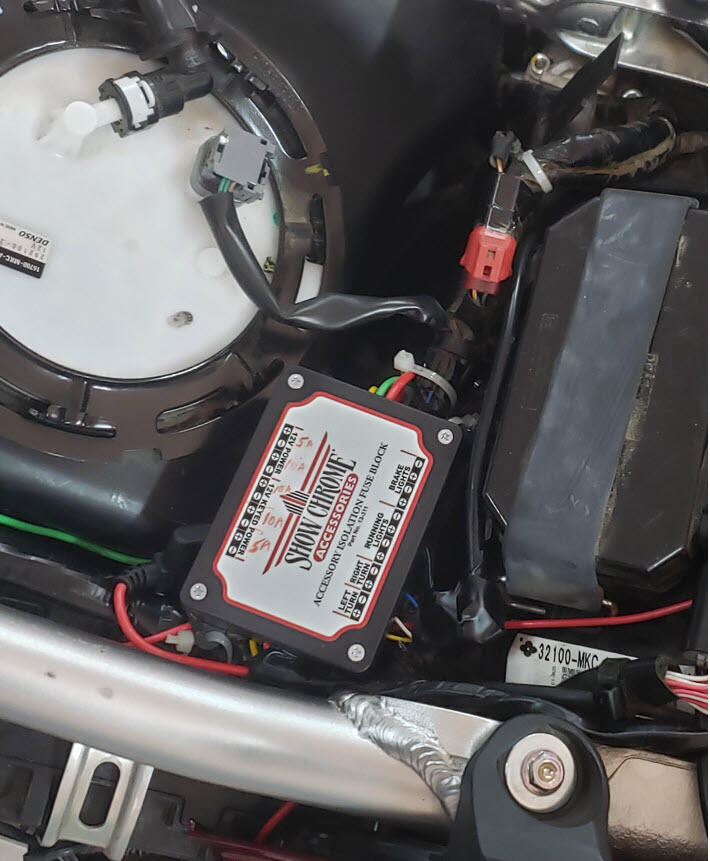

I installed this accessory fuse block on my 2021 Goldwing Tour DCT. The printed instructions and online YouTube videos show where to mount it under the seat on the left side just rear of the gas tank. I got everything spliced and buttoned up, then discovered the seat would not go down into place. There is a large plastic knob / stanchion under the left side of the seat there that rams right into the middle of the box. So I had to take it all apart, re-splice and re-tape, and put it on the right side with new plastic ties. A lot of re-work. Then it fits. I contacted Showchrome about this. They had based it all on a 2018 model. The seat bottom design must have changed after 2018, an they were not notified. If you buy this item, don't follow the instructions!
Part of the package is the plug-and-play sub-harnesses that goes in between the saddlebag light connectors under the seat, to pick up on brake and running light signals, and turn signals. That part is great and the block seems to work well, and was easy..
I also tried to install short wires on the accessory side (5 always on and keyed points, with + and - for each) as instructed so I can more easily add more accessories in the future. But the very tiny screws there do not seem to hold the wires in place very well. Every time I tried to gather them and route them to the side, 1 or more of them pulled right out of the block with almost no pressure. I tightened the screws over and over but same results. As I add items in the future I will need to solder wires right on to the block, I guess. For now I just took all those wires out.
The block is not very weather proof, but I just put black duct tape over the connection holes to keep dust and possible water spray out.
