2018 Goldwing PathBlazer Headlight Modulator

Out of stock
SKU: KIP115W-H3-GL8 UPC: 1396419007
(3)
Regular price $129.00 USD
Make sure to Select the Correct Option above before purchasing.
Send us an email at Info@Cyclemax.com
Give us a call at 330-225-1169

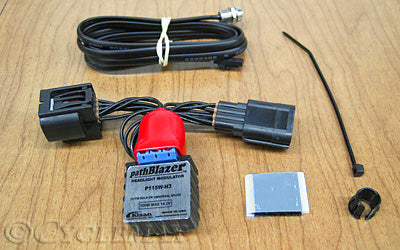

This is a PathBlazer headlight modulator. It is made by Kisan Technologies and is designed to modulate the headlight bulbs for better visibility. This is a complete plug and play unit and meets federal DOT standards in all states. This will fit all 2018-2021 Goldwing and Goldwing Tour models.  P115W-H3-GL8

P115W-H3-GL8 is designed with a 8-pin plug for the factory LED headlamp of the 2018 and newer models. It has matching 8-pin plug and socket for simple plug-in installation. Simply take apart the stock 8-pin connection and plug the pathBlazer in between.


8-pin plug

pathBlazer circuit modulates the hi-beam current - from 100% ON to about 17% OFF. This is accomplished by using a p-channel MOSFET, which is inherently safe. The MOSFET is designed to fail in the ON state. For additional safety, the circuits DO NOT utilize the lo-beam whatsoever!


This unit has a software version specifically for LED drive.

DO NOT use for incandescent bulbs.


P115W-H3-GL8 comes with a detachable daylight sensor, which simply plugs into the pathBlazer. The daInstall 2018 GL1800ylight sensor functions as a switch; it stops modulation when it cannot see enough daylight. Since the internal circuitry is controlled by a microprocessor, it allows for customizable features.


Programmable Daylight Sensor

3-Click Programming: If you turn the high beam on and then turn the ignition on three times quickly, the sequence is interpreted as an active command to change the sensitivity. Current software version v.3C-11 allows 8 linear steps between the high and low end.

The daylight sensor has a low frequency filter to avoid false triggering. Please note that florescent lamps may not trigger the sensor - it needs constant incandescent light.

pathBlazer uses a soft-switching technique. It throttles the current flow through the LED arrays of headlamps, so that appopriate intensities are maintained for modulation.

Select hi-beam to modulate - as long as there's sufficient daylight. If you enter a tunnel or if it gets dark, it will stop the modulation of the hi-beam and stay ON steady. Select lo-beam to end modulation.


Installation does not require any special tools. Everything needed to complete the job is in the product package. Follow the steps described in the Installation Manual enclosed in the product package.

 Item:   KIP115W-H3-GL8   Kisan Technologies

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jud Boyd

It works great and people get the hell out of my way.

G
GEinCO
Works great!

Very easy to install. Plug and play. Then you route the daylight sensing wire to somewhere pointing up. Just a lot of zip ties. Very quick installation.

A
Alfred Pennington
PathBlazer and TailBlazer install

I ordered the Kisan PathBlazer and TailBlazer from Cyclemax. Their customer service was beyond compare. I ordered on Friday and had them in my hand on Monday. After a quick and easy install I am pleased with the product. Kudos to both Kisan and Cyclemax.
